Mid Rise Scissor Hoist | 3.5 Ton- L65E

Description

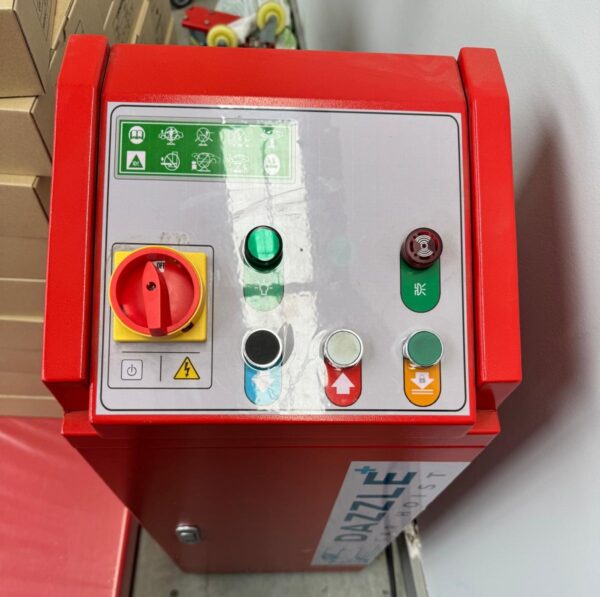

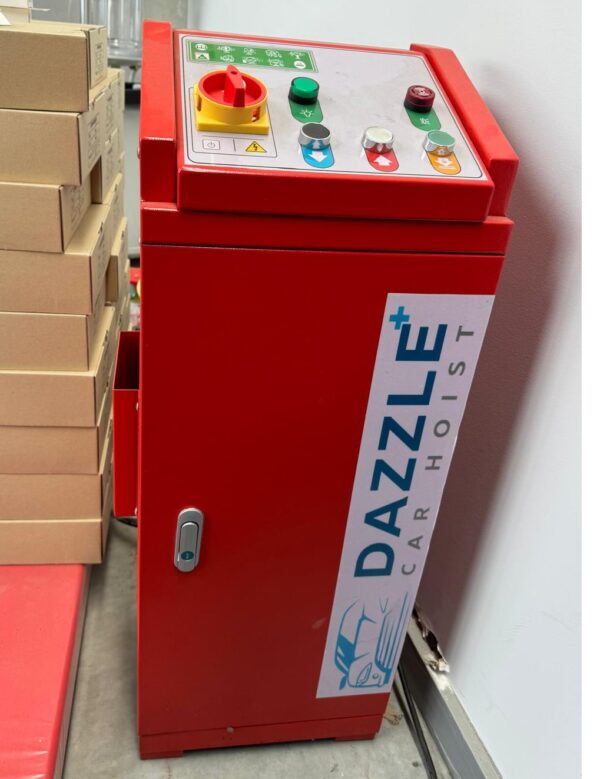

The Mid-Rise Scissor Lift features an electrical safety lock release and a low-profile, above-ground design that requires minimal space. It is equipped with a seamless steel pipe connecting platform to ensure stable operation and offers a mobile-type structure for user convenience. The fixed control cabinet includes a standard aluminium motor that prevents overheating and ensures long service life. The lift undergoes a surface shot blasting process followed by electrostatic powder spraying, providing strong surface adhesion and a durable powder-coated finish. It has been tested to meet 115% dynamic and 150% static load capacity standards.

Features

• Capacity: 3500 KG
• Lock Release: Electrolytic lock
• Power: 2.2 kw
• Lifting Height: 1000mm

Specifications

• Overall Hoist Minimum Height: 110mm
• Overall Hoist Maximum Height: 1000mm
• Overall Hoist Width: 1955mm
• Platform Length: 1430 mm
• Platform Width: 530 mm
• Lifting Time: 40 sec
• Lowering Time: 30 sec
• Freight Dimensions: 1850*1600*820mm
• Available 240V or 1-phase power
• Product finish: Powder Coated

Includes

• Hydraulic Oil
• Rubber Block
• Rubber Pad

Finance Available Through

Affordable plans starting from $80/month

Why Dazzle hoists

• Backed by a 5-year structural warranty
• Equipped with a durable, long-lasting aluminium motor
• Certified by Australian WorkSafe for safety compliance
• CE certified to meet international quality and safety standards
