C9335A – Brake Lathe

C9350 – Brake Lathe

$13,600.00

Price includes GST.

0 out of 5
( There are no reviews yet. )

Test

Description

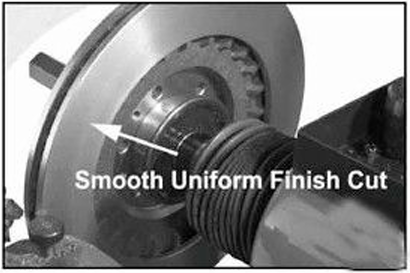

  • Quickly, accurately and efficiently cutting both drum and rotor.
  • Fast and slow setting.
  • Three kinds of speed to choose for spindle speed.
  • A convenient design to quickly change from rotor to drum. 5.Stop automatically after the cutting.



Includes

Name Qty
Twin Cutter 1
Arbor (1″   /25.4mm) with nut, combination
washer, flat washer and tie rod		 1
Plastic Safety Shield 1
Open End Wrench (27—30mm) 1
Square Wrench 1
V Belt A610 1
Cutting Bar 3
Silencing Belt for Rotor and Drum 2
Taper Cone (30x44mm) 1
Taper Cone (31x57mm) 1
Taper Cone (45x70mm) 1
Taper Cone (59x75mm) 1
Taper Cone (66x82mm) 1
Taper Cone (74x90mm) 1
Taper Cone (85.8x103mm) 1
Double Taper Cone 1.34″   x1.66″ 1
Double Taper Cone 1.36″   x1.69” 1
Double Taper Cone 1.72″  x2.06” 1
Double Taper Cone 2.06″   x2.44” 1
Double Taper Cone 2.45”  x2.81” 1
Spring 1
Clamp (94mm) 2
Clamp (116mm) 2
Clamp (146mm) 2



Specifications

Item C9350
Spindle Travel 6.875″(175mm)
Spindle Feed Speed 0.002″(0.05mm) – 0.02″ (0.5mm) Rev
Handwheel Thickness 0.002″(0.05mm)
Rotor Thickness 1.875″ (48mm)
Drum Depth 6.875″ (175mm)
Gross Weight 290kg
Spindle Speed 7088118RPM

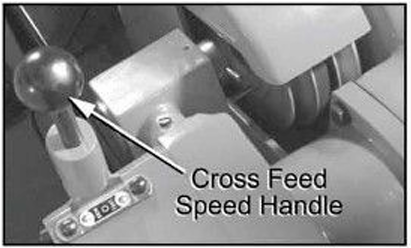

Cross Feed Speed 0.002″(0.05mm) – 0.02″ (0.5mm)Rev
Rotor Diameter 7″-15″ (180-381mm)
Drum Diameter 6″-17.7″ (152-450mm)
Motor 110V/220V/380V50/60Hz
Dimension 1010*950*1150mm
