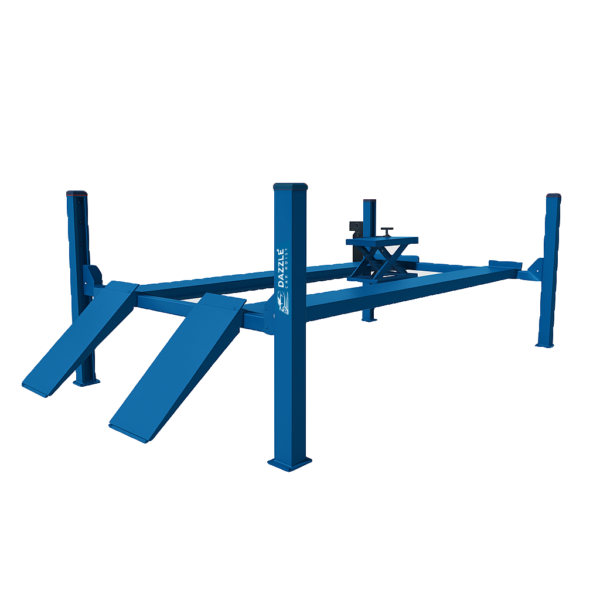

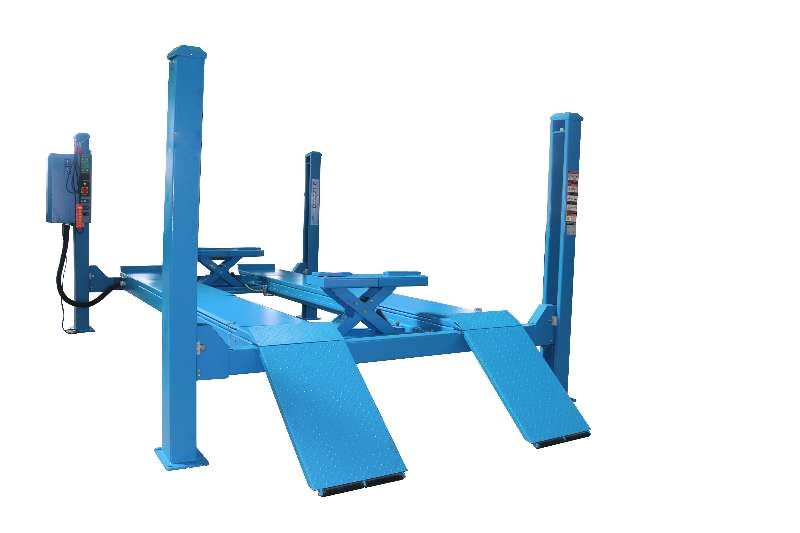

4 Post Hoist | 6 Ton Wheel Alignment Hoist | Includes Rolling Jack – L460A

Description

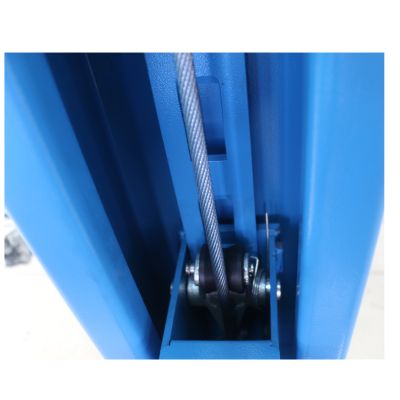

The Four Post Car Hoist features an electric release and a reliable mechanical safety locking system.  Its 225 mm low-profile runways allow for easy drive-on and drive-off access. Equipped with a height limit switch, it ensures the runways and cylinders operate within a safe stroke range. To prevent rapid descent caused by hydraulic leakage, the hoist incorporates a flow-control technique within the hydraulic system. The structure undergoes a surface shot blasting process and electrostatic powder spraying, resulting in strong surface adhesion and a durable powder-coated finish. It has been rigorously tested to meet 115% dynamic and 150% static load capacity standards.

Features

• Capacity: 6000 kg

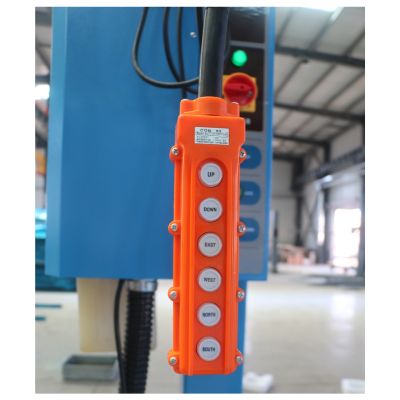

• Lock Release: Electrolytic lock
• Available 400v 50Hz 3-phase power
• Power: 2.2 kW
• Lifting Height: 1,800 mm
• Lifting Height of JACK: 529 mm

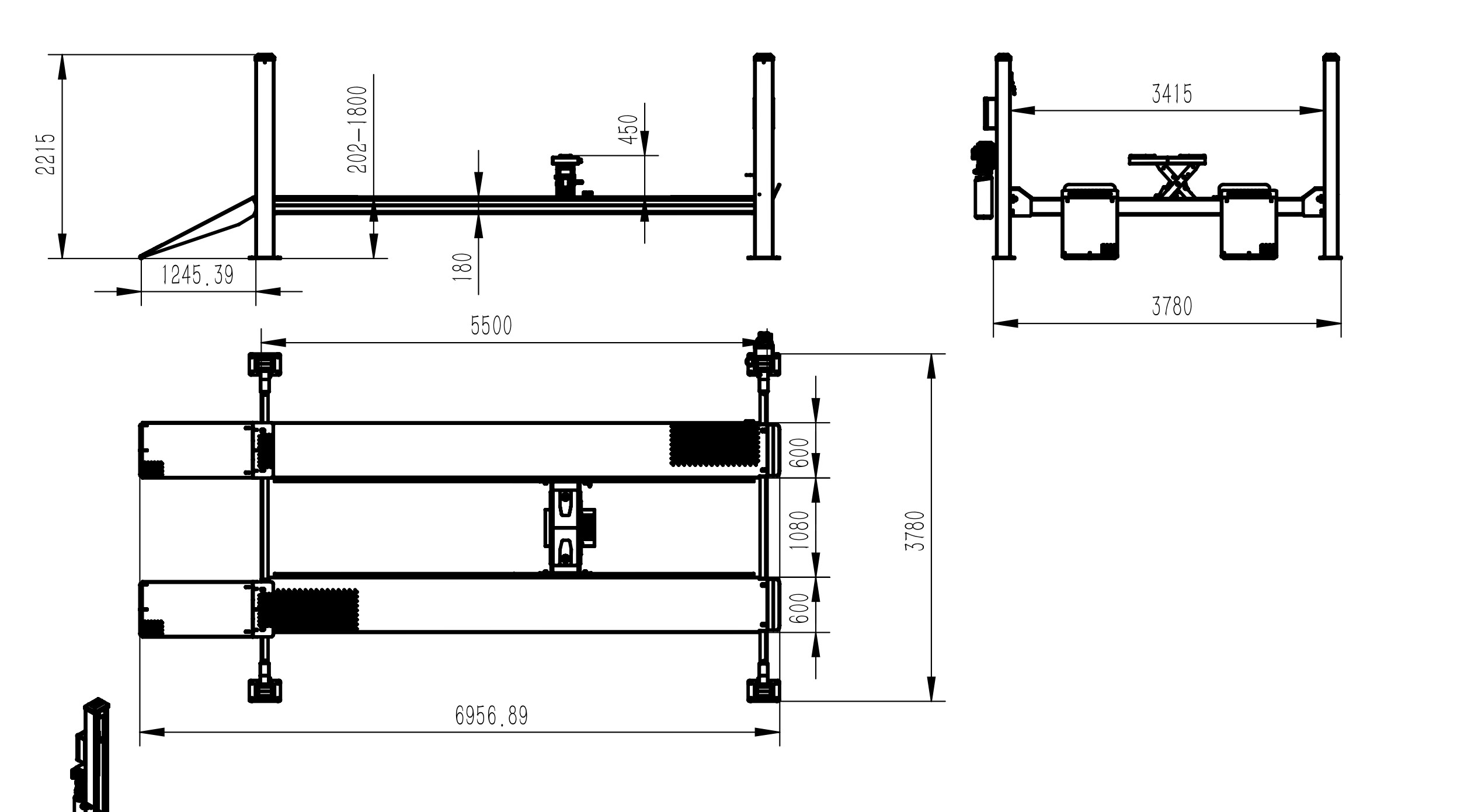

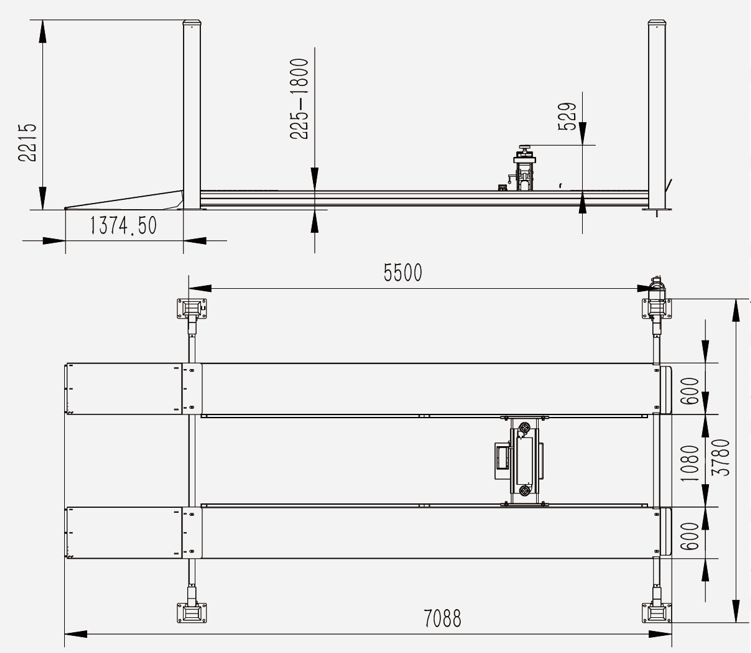

• Width Between Columns: 3,415 mm

Specifications

• Minimum Concrete Requirement: 300 mm
• Recommended Ceiling Height: ≥ 2300 mm
• Minimum Pad Height: 225 mm
• Overall Hoist Height: 2,215 mm
• Overall Hoist Width: 3,780 mm
• Drive-through clearance: 3,380 mm
• Lifting Time: 50 sec
• Lift Down Time: 40 sec
• Freight Dimensions: 4,650 * 710 * 2,000 mm
• Product finishing: Durable powder coating

Includes

• Hydraulic Oil

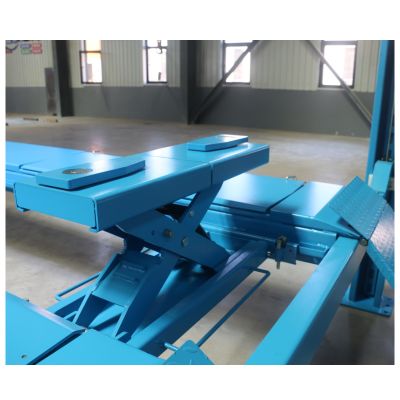

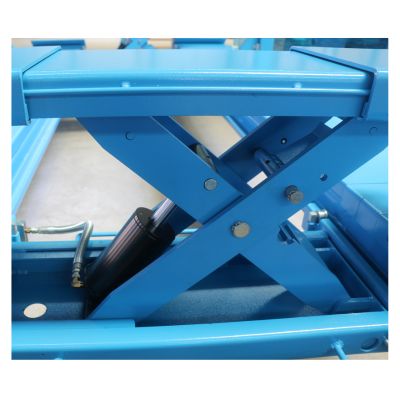

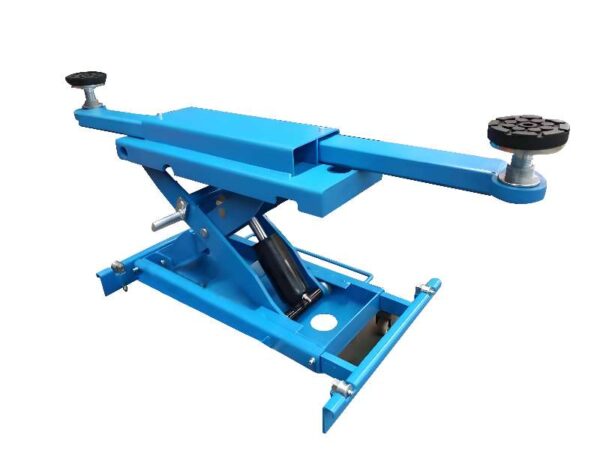

• Two Rolling Jacks

Finance Available Through

Affordable plans starting from $80/month

Why Dazzle hoists

• Backed by a 5-year structural warranty
• Equipped with a durable, long-lasting aluminium motor
• Certified by Australian WorkSafe for safety compliance
• CE certified to meet international quality and safety standards
