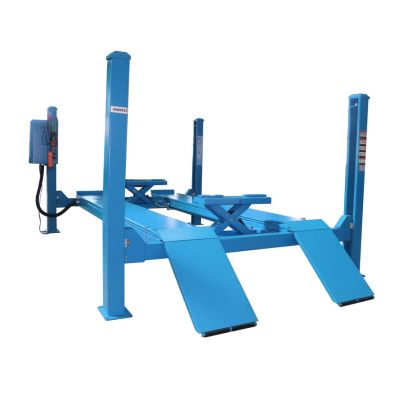

4 Post Hoist | 4.5 Ton Wheel Alignment Hoist | Includes Rolling Jack – L440E

Description

The Four Post Car Hoist features an electric release and a reliable mechanical safety locking system. Its 225 mm low-profile runways allow for easy drive-on and drive-off access. Equipped with a height limit switch, it ensures the runways and cylinders operate within a safe stroke range. To prevent rapid descent caused by hydraulic leakage, the hoist incorporates a flow-control technique within the hydraulic system. The structure undergoes a surface shot blasting process and electrolytic powder spraying, resulting in strong surface adhesion and a durable powder-coated finish. It has been rigorously tested to meet 115% dynamic and 150% static load capacity standards.

Features

• Capacity: 4,500 KG
• Lock Release: Electrolytic lock
• Power: 2.2 kw
• Lifting Height: 1,830 mm
• Lifting Height of JACK: 450 mm
• Width Between Columns: 2705.6 mm

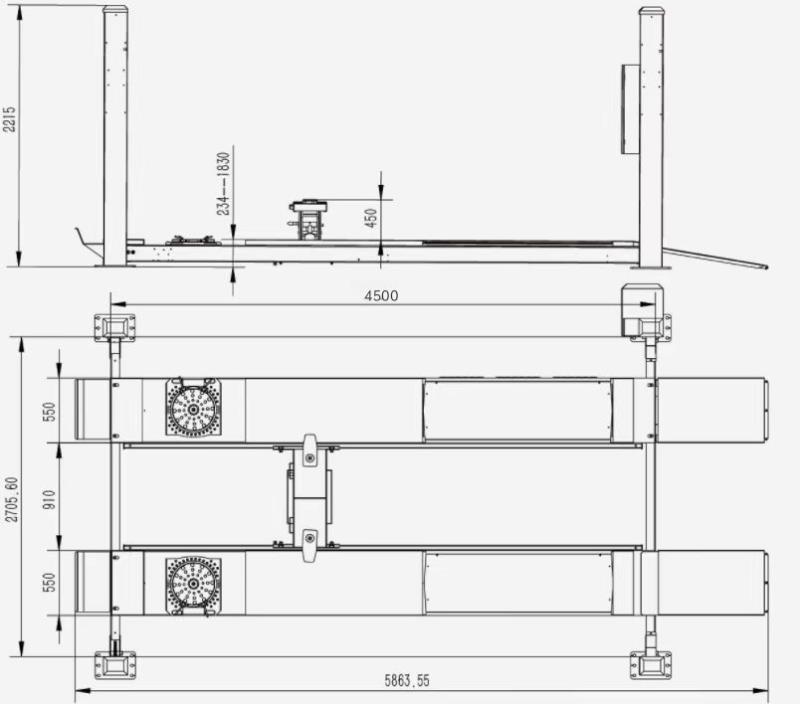

Specifications

• Minimum Concrete Requirement: 300 mm
• Recommended Ceiling Height: ≥ 2,300 mm
• Minimum Pad Height: 234 mm
• Overall Hoist Height: 2,215 mm
• Overall Hoist Width: 3,344 mm
• Drive-through Clearance: 2705.6 mm
• Lifting Time: about 50 sec
• Lifting Down Time: 40 sec
• Freight Dimensions: 4,520 * 700 * 990 mm
• Available 400v 50Hz 3-phase power
• Finishing with: powder Coating

Includes

• Hydraulic Oil
• Two Rolling Jacks

Finance Available Through

Affordable plans starting from $80/month

Why Dazzle hoists

• Backed by a 5-year structural warranty
• Equipped with a durable, long-lasting aluminium motor
• Certified by Australian WorkSafe for safety compliance
• CE certified to meet international quality and safety standards
