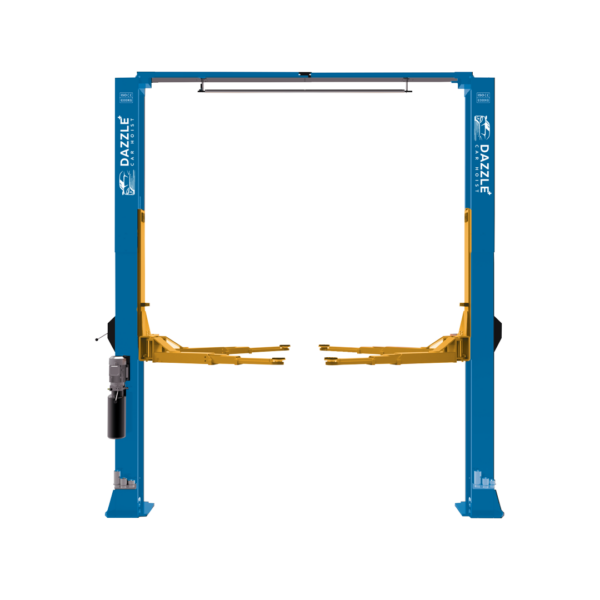

2 Post Hoist | 6.3 Ton Clear Floor – L26CS

Description

The Clear Floor Two Post Lift features a manual safety lock release from one side and a safe, reliable bending plate-type carriage design. It includes an external safety lock for easy inspection and maintenance, along with dual limit switches that help extend cylinder lifespan and enhance vehicle safety. The straight-top cylinder design ensures smoother operation. Additionally, the lift is treated with a surface shot blasting process followed by electrostatic powder spraying, providing strong surface adhesion and a durable powder-coated finish. It has successfully passed testing for 115% dynamic and 150% static load capacity.

Features

• Capacity: 6300 kg
• Lock Release: One-point manual unlock release
• Power Supply: 230 v 50 Hz 1-phase or 400v 50Hz 3-Phase
• Power: 3.0 kW
• Lifting Height: 1,900 mm
• Lifting Height with Adapters: 2,000 mm
• Width Between Columns: 3,300 mm

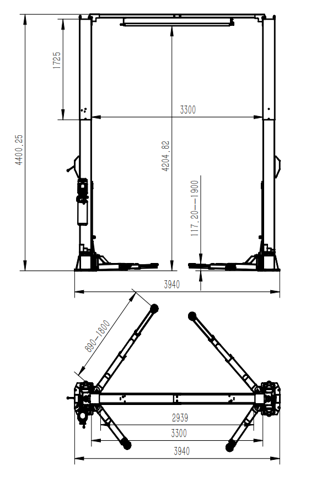

Specifications

• Minimum Concrete Requirement: 300 mm
• Recommended Ceiling Height: ≥ 4,500 mm
• Minimum Pad Height: 117.2 mm
• Overall Hoist Height: 4,400.25 mm
• Overall Hoist Width: 3,940 mm
• Drive-through clearance: 2,939 mm
• Lifting Time: 50 sec
• Lift Down Time: 40 sec
• Arm Design: 3+3
• Freight Dimensions: 2,820 * 1,070 * 710 mm

Includes

• Screw Pad
• Pad Height Adapter
• Wedge Anchor Bolts
• Hydraulic Oil

Finance Available Through

Affordable plans starting from $80/month

Why Dazzle hoists

• Backed by a 5-year structural warranty
• Equipped with a durable, long-lasting aluminium motor
• Certified by Australian WorkSafe for safety compliance
• CE certified to meet international quality and safety standards
