2 Post Hoist | 4.5 Ton Clear Floor – L25CS

Description

The Clear Floor Two Post Lift features a manual safety lock release from one side and a bending plate-type carriage design that ensures safety and reliability. An external safety lock allows for easy inspection and maintenance, while dual limit switches enhance cylinder longevity and vehicle safety. The cylinder’s straight top design ensures smoother operation. The lift undergoes a surface shot blasting process followed by electrostatic powder spraying, providing strong surface adhesion and a durable powder-coated finish. It has successfully passed rigorous testing with 115% dynamic and 150% static load capacity.

Features

• Capacity: 4,500 kg
• Lock Release: One-point manual unlocks release or electrolytic lock release
• Power Supply: 230 v 50 Hz 1-phase or 400v 50Hz 3-Phase
• Power: 2.2 kW
• Lifting Height: 1,900 mm
• Lifting Height with Adapters: 1,970 mm

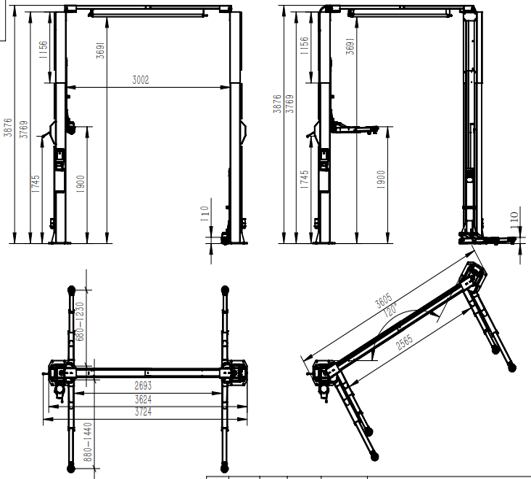

• Width Between Columns: 3,002 mm

Specifications

• Minimum Concrete Requirement: 300 mm
• Recommended Ceiling Height: ≥ 3,950 mm
• Minimum Pad Height: 110 mm
• Overall Hoist Height: 3,876 mm
• Overall Hoist Width: 3,724 mm
• Drive-through clearance: 2,693 mm
• Lifting Time: 50 sec
• Lift Down Time: 40 sec
• Arm Design: 2+3
• Freight Dimensions: 2,880 × 740 × 810 mm

Includes

• Screw Pad
• Pad Height Adapter
• Wedge Anchor Bolts
• Hydraulic Oil

Finance Available Through

Affordable plans starting from $80/month

Why Dazzle hoists

• Backed by a 5-year structural warranty
• Equipped with a durable, long-lasting aluminium motor
• Certified by Australian WorkSafe for safety compliance
• CE certified to meet international quality and safety standards

.
