2 Post Hoist | 5 Ton Base Plate – L25BE

Description

The hoist features a user-friendly electrical release system operated by simple Up, Lock, and Down buttons. Its bending plate-type carriage design ensures safety and reliability, while the ABS control box with a rubber gasket provides water resistance and prevents electrical leakage, operating on a 24-volt safety control system. The standard aluminium motor prevents overheating and ensures long service life. With a symmetric arm design and four triple-stage arms, the lift accommodates a wide range of vehicles—from cars to light vans. It undergoes a surface shot blasting process followed by electrostatic powder spraying for strong adhesion and a durable powder-coated finish. The lift has passed rigorous testing, meeting 115% dynamic and 150% static load capacity standards.

Features

• Capacity: 5,000 kg
• Lock Release: One-point manual unlocks release or electrolytic lock release
• Power Supply: 230 v 50 Hz 1-phase or 400v 50Hz 3-Phase
• Power: 3.0 kw

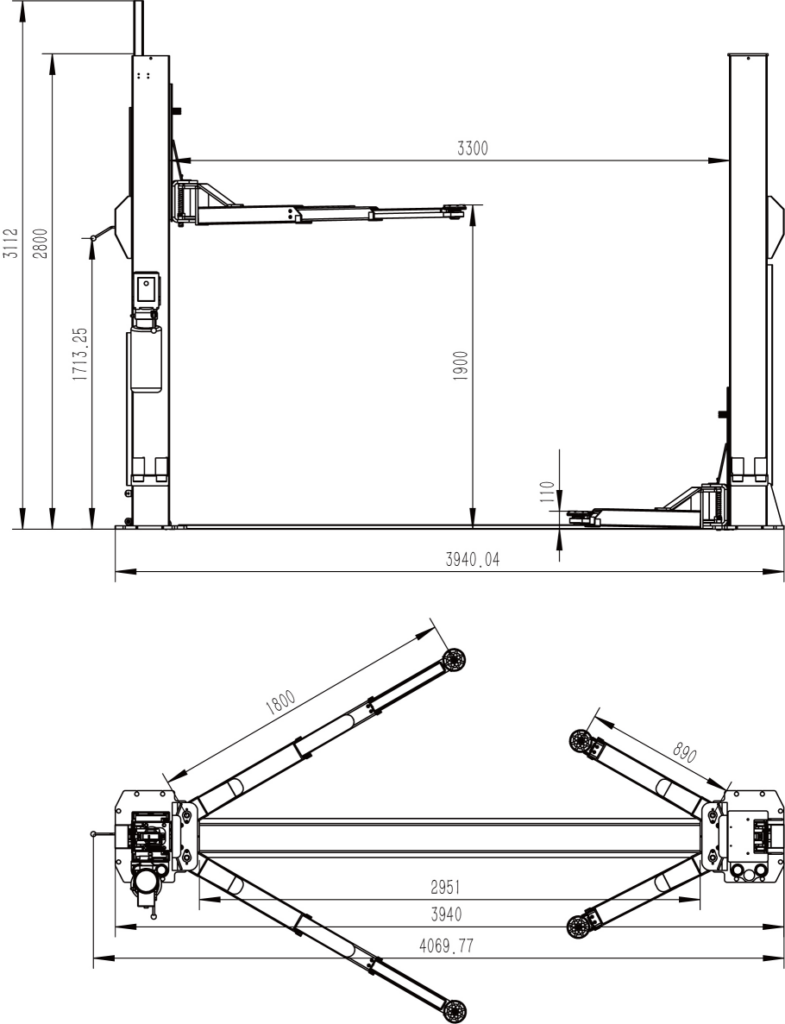

• Lifting Height: 1900mm
• Lifting Height with Adapters: 2000mm
• Width Between Columns: 3300mm

Specifications

• Minimum Concrete Requirement: 300 mm
• Recommended Ceiling Height: ≥ 3,200 mm
• Minimum Pad Height: 110 mm
• Overall Hoist Height: 2,800 mm
• Overall Hoist Width: 3,940 mm
• Drive through clearance: 2,951 mm
• Lifting Time: 50 sec
• Lift down time: 40 sec
• Arm Design: 3+3
• Freight Dimensions: 2,850 * 560 * 900 mm

Includes

• Screw Pad
• Pad Height Adapter
• Wedge Anchor Bolts
• Hydraulic Oil

Finance Available Through

Affordable plans starting from $80/month

Why Dazzle hoists

• Backed by a 5-year structural warranty
• Equipped with a durable, long-lasting aluminium motor
• Certified by Australian WorkSafe for safety compliance
• CE certified to meet international quality and safety standards
